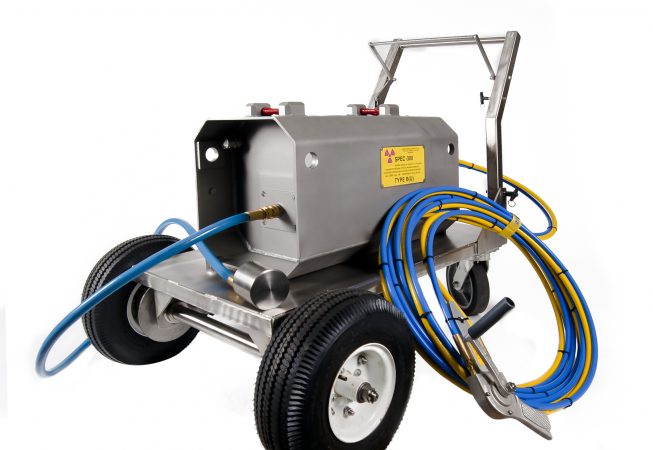

SPEC-150® & SPEC-300® Industrial Radiography Systems

BENEFITS
• durable
• withstands most common impacts
• highly corrosion resistant
• tie down holes

LOW MAINTENANCE
• dissassembly is not required for normal cleaning or maintenance
• both the 150 and 300 systems are lubricant free
• replaceable ASM helps minimize unnecessary down time

SAFETY FEATURES
• SPEC’s Automatic Securing Mechanism (ASM) is an uniquely designed lock module with minimum moving components to secure the source assembly
• ASM helps minimize control hookup errors and control drive cable misconnects
• permanent warning & caution labels

SPEC offers an optional maintenance program designed to help control costs and keep equipment at peak performance

SPEC-150® SPEC-300®
Construction fully welded titanium with stainless steel fittings fully welded stainless steel
Shield depleted uranium shield with titanium S-tube depleted uranium shield with titanium S-tube
Sources SPEC Model G-60 SPEC Model G-70
Rated Capacity 150 Ci 5.5 TBq of IR-192 & SE-75 300 Ci 11.1 TBq Co-60
Dimensions 14.5″L x 5.375″W x 5.623″H 26″L x 14″W x 15″H             46″L x 30″W x 38.5″ with cart
weight approx. 53 lbs 697 lbs without cart        884lbs with cart


CLICK HERE FOR SPEC-150® Brochure

CLICK HERE FOR SPEC-300® Brochure

CONTACT SALES AT 504-464-9471 TO ORDER
